主要特性與技術(shù)指標(biāo)

• Maximum Number of Laser Lines Input: 1000

• Wavelength Range: 1270 – 1650 nm (182 to 236 THz)

• Wavelength Absolute Accuracy: ±0.2 ppm (±0.3 pm at 1550 nm and 1310 nm) for laser lines separated by ≥10 GHz

描述

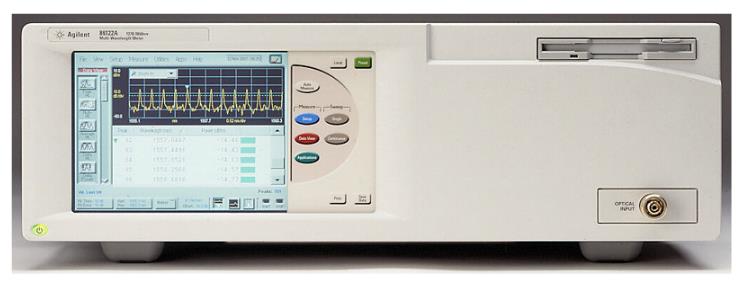

Keysight's Multi-Wavelength Meter 86122A is the right, instrument to efficiently develop, manufacture and verify optical components for next generation high-speed applications, especially systems equipped with tunable transmitter laser.

Features:

• Wavelength scan in less than 0.5sec

• Wavelength accuracy: ± 0.3 pm

• High Laser Input power: 10dBm (18dBm - Safe Input level)

• Advanced built-in measurement applications (Drift, OSNR, Data Logging, FP Laser Characterization)

• Built-in HeNe laser wavelength standard

Benefits:

• The fast wavelength scan allows you to double the speed of characterizing optical devices versus wavelength.

• The wavelength accuracy gives you the certainty of accurate channel characterization in dense WDM systems, to detect channel's wavelength shift and crosstalk between adjacent channels.

• Enables you to test transmitter without additional connections and instruments (e.g. attenuator).

• The built-in applications allow smart stand-alone test stations, which reduces footprint requirements and costly test procedure development.

• The built-in HeNe guarantees an accurate absolute wavelength measurement real-time determined against the standard anytime and ensures accurate and reproducible experimental results.
