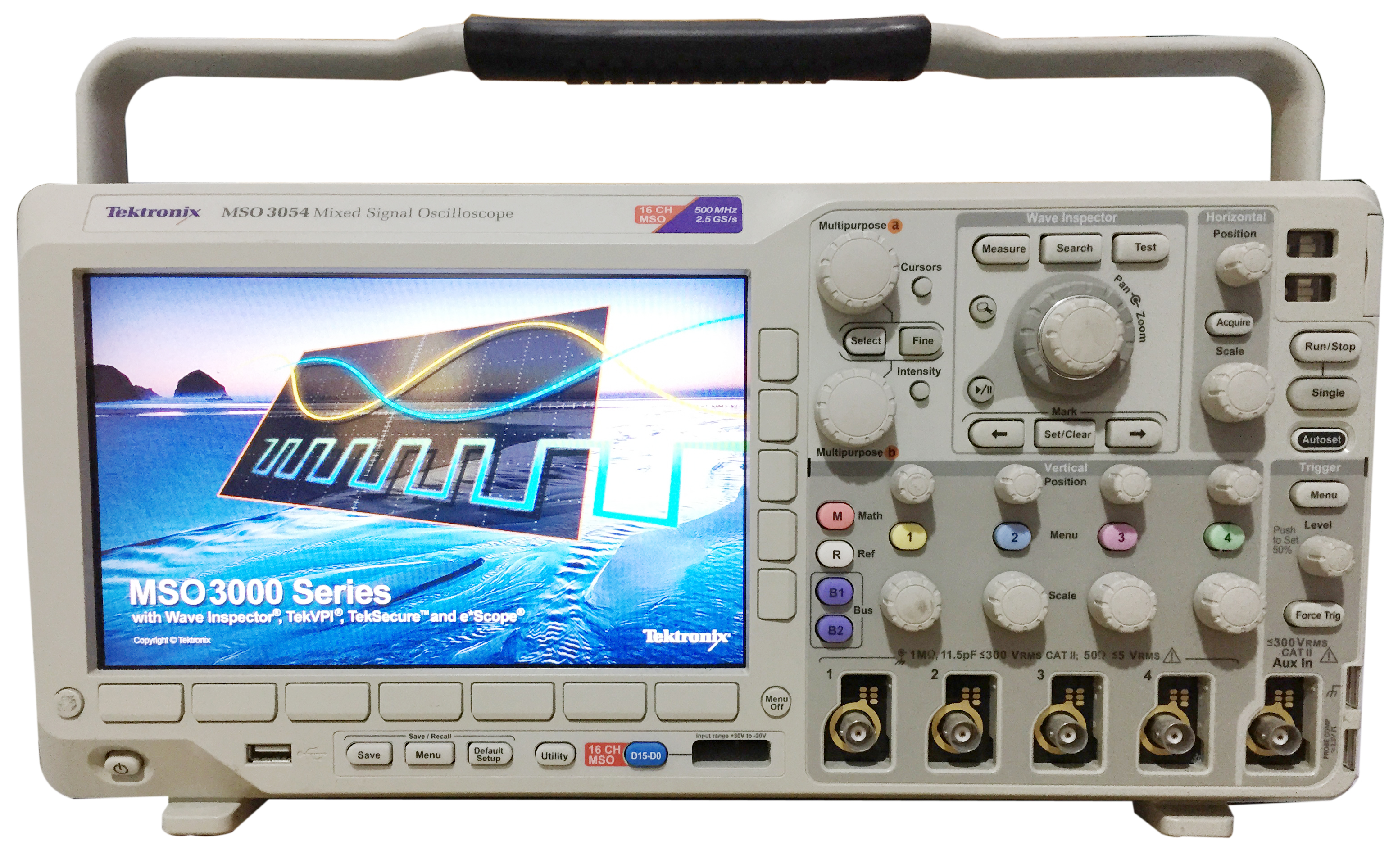

MSO3000 / DPO3000系列混合信號示波器

概述

With the MSO/DPO3000 mixed signal oscilloscope series, you can analyze up to 20 analog and digital signals with a single instrument to quickly find and diagnose problems in complex designs. Bandwidths up to 500 MHz and a minimum of 5x oversampling on all channels ensure you have the performance you need for many of today's mainstream applications. To capture long windows of signal activity while maintaining fine timing resolution, the MSO/DPO3000 offers a deep record length of 5 M points standard on all channels.

Key performance specifications

• 500, 300, 100 MHz bandwidth models

• Bandwidth is upgradable (up to 500 MHz)

• 2 and 4 analog channel models

• 2.5 GS/s sample rate on all channels

• 5 mega-point record length on all channels

• >50,000 wfm/s maximum waveform capture rate

• Suite of advanced triggers

Key features

• Wave Inspector? Controls provide easy navigation and automated search of waveform data

• 29 automated measurements, and FFT analysis for simplified waveform analysis

• 16 digital channels (MSO series)

• Mixed signal design and analysis (MSO series)

• Automated triggering, decode, and search on parallel buses

• Multichannel setup and hold triggering

• MagniVu? high-speed acquisition provides 121.2 ps fine timing resolution on digital channels

• Optional serial triggering and analysis - automated serial triggering, decode, and search options for I2C, SPI, CAN, LIN, RS-232/422/485/UART, and I2S/LJ/RJ/TDM

• TekVPI? probe interface supports active, differential, and current probes for automatic scaling and units

• 9 in. (229 mm) WVGA widescreen color display

• Small footprint and lightweight – Only 5.8 in. (147 mm) deep and 9 lb. (4 kg)

Connectivity

• USB 2.0 host port on both the front panel and rear panel for quick and easy data storage, printing, and connecting a USB keyboard

• USB 2.0 device port on the rear panel for easy connection to a PC or direct printing to a PictBridge?-compatible printer

• Integrated 10/100 Ethernet port for network connection and video out port to export the oscilloscope display to a monitor or projector

Optional application support

• Power analysis

• HDTV and custom video analysis

download: MSO3000 _ DPO3000系列示波器技術(shù)資料
