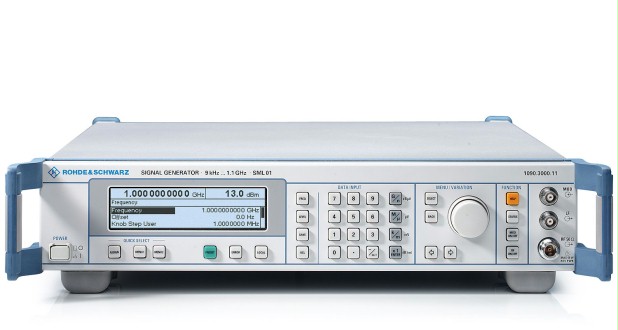

R&S?SML Signal Generator

Economy at its best

Key Facts

The Signal Generator family R&S?SML offers all features required of a state-of-the-art general-purpose signal generator: wide frequency range, large variety of modulation functions and high reliability – at an extremely attractive price.

Features

Wide output frequency range from 9 kHz to 3.3 GHz with 0.1 Hz resolution: With the wide frequency range many applications are covered and one instrument can be used in many different tasks.

Detailed introduction to R&S SML03 SIGNAL GENERATOR 9KHz - 3.3GHz:

The R&S SML03 Signal Generator offers all features required of a state-of-the-art general-purpose signal generator: wide frequency range, large variety of modulation functions and high reliability – at an extremely attractive price. The fields of application of the Rohde & Schwarz SML03 are virtually unlimited in development, servicing or production where it is used as a flexible signal source in automatic test systems.

Specifications of the R&S SML Signal Generator include:

- Frequency Range: 9 kHz - 3.3 GHz

- 0.1 Hz Frequency Resolution

- Level Range: -140 dBm to +13 dBm

- High level accuracy (deviation -120 dBm)

- Level setting without overshoots

- Electronic Attenuator

- Non-interrupting level setting

- Spectral Purity

   * SSB phase noise <-122 dBc (1 Hz), typ. -128 dBc (1 Hz) (f = 1 GHz, carrier offset 20      kHz)

   * Broadband noise <-140 1="" dbc="" typ.="" -150="" f="1" carrier="" offset="">2      MHz)

- Speed

   * Setting times<10 ms for frequency and level

- Modulation

   * AM/FM/?M as standard

   * Simultaneous AM, FM/?M and pulse modulation

   * Optional pulse modulator with integrated pulse generator (Option B3)

- Low cost of ownership

   * 3-year calibration cycle

   * Low purchase price

   * High reliability through electronic attenuator (wear-free)

   * Service-friendly (continuous selftest, access to internal test points)

   * Options OCXO (Option B1), pulse modulator (Option B3) and Stereo/RDS Coder (Option B5)
